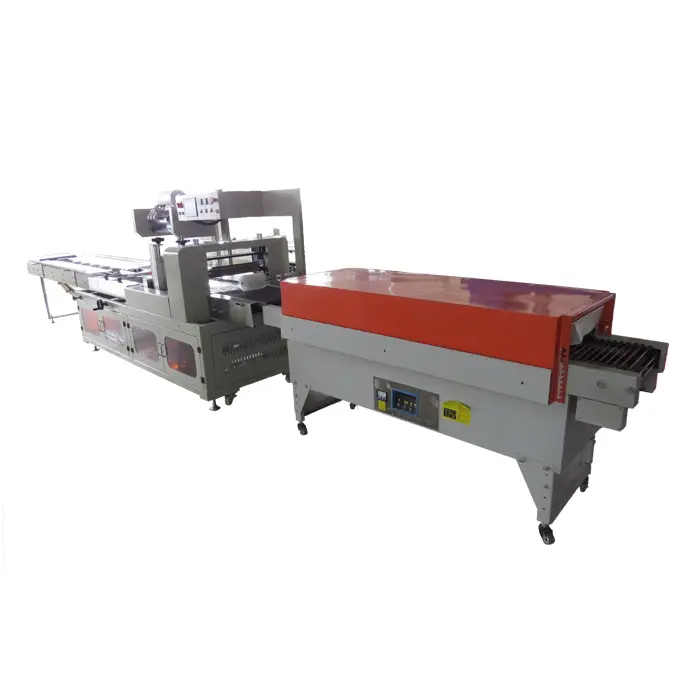

For manufacturers seeking faster throughput, cleaner package presentation, and more reliable sealing, the High Speed Side Sealing Shrink Wrapping Machine from Huaze offers a practical automation solution. Designed around high-speed side sealing, controlled shrink technology, and continuous conveying, this packaging system helps manufacturers reduce manual intervention while maintaining consistent packaging quality across demanding production environments.
A modern shrink wrapping system must do more than simply cover a product with film. It needs to maintain sealing consistency, control shrinkage, support rapid product changes, reduce energy losses, and integrate smoothly with existing production lines. The High Speed Side Sealing Shrink Wrapping Machine addresses these requirements through a U-shape sealing mechanism, adjustable conveying, PLC-based control, thermal insulation, internal hot-air circulation, and automated continuous operation.
Huaze offers HZ-RS450 and HZ-RS800 configurations, with packaging speeds reaching up to 100 packs per minute depending on the model and application. The equipment is designed for POF film and can serve industries including food, medicine, cosmetics, electronics, cables, and other manufactured goods that require attractive and protective secondary packaging.
Table of Contents
- Why Is High-Speed Side Sealing Becoming Important?
- How Does a High Speed Side Sealing Shrink Wrapping Machine Work?
- What Are the Key Technical Features?
- What Are the Main Technical Parameters?
- What Business Benefits Can Manufacturers Expect?
- Which Industries Can Use This Packaging Machine?
- How Should Buyers Choose the Right Model?
- How Can Operators Maintain Stable Long-Term Performance?
- Frequently Asked Questions
- Conclusion
Why Is High-Speed Side Sealing Becoming Important?
Packaging has become an important part of manufacturing efficiency. When production volumes increase, manual wrapping and conventional sealing processes can quickly become bottlenecks. Inconsistent film tension, uneven seals, excessive labor requirements, and product changeover delays can all affect production costs.
A high-speed side sealing configuration changes the way film is sealed around the product. Instead of leaving a prominent sealing line across a major product surface, the sealing point is positioned along the side. This approach can provide a cleaner appearance while supporting continuous automated packaging.
For retail-oriented products, presentation is particularly important. A tightly shrunk and visually clean package can improve shelf appearance while helping protect the product from dust, moisture, abrasion, and handling damage during transportation.
- Higher packaging throughput
- More consistent sealing quality
- Reduced dependence on manual packaging labor
- Cleaner and more professional package appearance
- Better suitability for continuous production
- Improved protection during storage and transportation
How Does a High Speed Side Sealing Shrink Wrapping Machine Work?
The packaging process combines product conveying, film wrapping, side sealing, cutting, and heat shrinking into a continuous workflow. The product is transported through the feeding section while the film is positioned around it. The side-sealing system then creates the longitudinal and transverse seal connection.
Huaze's U-shape sealing mechanism is designed so that the film seals meet on the side of the packaged product. This configuration helps produce a neat package while maintaining continuous operation.
After sealing, the wrapped product enters the shrink tunnel. Controlled hot air circulates inside the chamber to shrink the POF film around the product. Internal airflow and temperature management are important because uneven heat distribution can result in wrinkles, loose film, or excessive shrinkage.
The overall process can be summarized as:
- Product feeding and positioning
- Automatic film wrapping
- Side sealing and cutting
- Transfer into the shrink tunnel
- Controlled hot-air shrinking
- Cooling and package stabilization
- Continuous discharge for downstream handling
What Are the Key Technical Features?
U-Shape Side Sealing Mechanism
The side sealing mechanism is one of the defining characteristics of this equipment. By bringing the longitudinal and transverse seals together on the side, the system can create a more attractive finished package while supporting high-speed operation.
PLC Touch-Screen Control
The machine uses a multi-language PLC touch-screen interface for operational control. Operators can manage production parameters, store packaging recipes, and simplify product changeovers. This is particularly useful for manufacturers handling multiple product sizes on the same production line.
Adjustable Infeed Conveyor
The front conveyor can be adjusted according to production requirements. Proper conveyor synchronization helps maintain stable product spacing and reduces unnecessary interruptions during continuous packaging.
Thermally Insulated Shrink Tunnel
The shrink tunnel incorporates an insulation layer designed to reduce heat loss between the internal heating chamber and the external machine structure. Better thermal management can improve shrink consistency while reducing unnecessary energy consumption.
Internal Air Circulation
Balanced internal air circulation and jet airflow help distribute heat more evenly throughout the shrink tunnel. This is essential when consistent film appearance and dimensional stability are important.
Heat-Resistant Conveyor Protection
The shrink tunnel conveyor system can use Teflon-coated mesh components or heat-resistant silicone protection. These materials are designed to reduce the risk of film sticking and support smooth product movement under demanding operating conditions.
What Are the Main Technical Parameters?
The HZ-RS450 and HZ-RS800 configurations provide different packaging capabilities for manufacturers with different production requirements.
| Specification | HZ-RS450 | HZ-RS800 |
|---|---|---|
| Packaging Material | POF | POF |
| Packaging Range | L: 55–300 mm; W: 20–180 mm; H: 5–60 mm | W: 340 mm; L: 500 mm |
| Packaging Speed | 10–100 packs/minute | 10–80 packs/minute |
| Machine Dimensions | 6200 × 850 × 1450 mm | 7200 × 850 × 1450 mm |
| Power Supply / Power | 2.6 kW + 15 kW | 2.8 kW + 15 kW |
| Machine Weight | 650 kg + 200 kg | 800 kg + 250 kg |
Actual production performance depends on product dimensions, product characteristics, film specifications, packaging configuration, and operating conditions. Buyers should therefore confirm their product samples and production targets before selecting the final machine configuration.
What Business Benefits Can Manufacturers Expect?
1. Higher Production Efficiency
With packaging speeds of up to 100 packs per minute on the HZ-RS450 model, automated side sealing can significantly improve throughput compared with labor-intensive manual packaging processes.
2. Consistent Package Appearance
Automated film feeding and controlled sealing help maintain repeatable packaging results. The side-sealing design can also keep the main product surface visually cleaner.
3. Reduced Labor Dependency
Automating repetitive wrapping and sealing tasks allows production facilities to reduce manual handling and allocate employees to quality control, material preparation, equipment management, and other higher-value activities.
4. Faster Product Changeovers
Recipe storage and handwheel-based adjustment can simplify changeovers when manufacturers need to process products with different dimensions.
5. Improved Product Protection
Properly shrunk POF film creates a close-fitting outer layer that can help protect packaged products from dust, moisture, surface abrasion, and handling impacts during logistics.
6. Better Thermal Efficiency
Insulation and controlled hot-air circulation help stabilize the shrink process. Better heat management can reduce unnecessary heat loss and contribute to more efficient machine operation.
Which Industries Can Use This Packaging Machine?
The versatility of side-sealing shrink technology makes it suitable for a broad range of industrial and commercial products.
| Industry | Typical Packaging Applications | Main Packaging Objective |
|---|---|---|
| Food & Beverage | Boxed and packaged food products | Protection and retail presentation |
| Pharmaceutical | Secondary packaged products | Clean appearance and handling protection |
| Cosmetics | Boxes, bottles, and retail packages | Shelf appeal and surface protection |
| Electronics | Electronic accessories and components | Dust and abrasion protection |
| Cables & Hardware | Bundled industrial products | Unitizing and logistics protection |
| General Manufacturing | Retail and industrial products | Automated secondary packaging |
How Should Buyers Choose the Right Model?
Choosing a shrink wrapping machine should be based on the complete production requirement rather than speed alone. A machine that is technically fast but poorly matched to product dimensions may not deliver the expected return on investment.
Before purchasing, buyers should evaluate the following factors:
- Product dimensions: Confirm the minimum and maximum length, width, and height.
- Required throughput: Determine the target packs per minute and daily production volume.
- Film type: Confirm that POF film and the required film thickness are compatible with the equipment.
- Product characteristics: Consider product shape, weight, surface condition, and stability during conveying.
- Available factory space: Check machine dimensions and downstream conveyor requirements.
- Power availability: Confirm that the factory electrical system can support the machine.
- Automation requirements: Consider whether the equipment needs to connect with upstream or downstream machines.
- After-sales support: Evaluate installation, commissioning, spare parts, training, and technical service capabilities.
For international buyers, working directly with an experienced China manufacturer can also simplify customization, factory testing, technical communication, spare-parts planning, and installation support.
How Can Operators Maintain Stable Long-Term Performance?
Even a high-performance packaging machine requires regular maintenance. Preventive maintenance helps reduce unexpected downtime and supports stable sealing and shrinking performance.
Daily Checks
- Inspect film feeding and film tension.
- Clean sealing areas and remove film residue.
- Check conveyor movement and product positioning.
- Inspect emergency stop and safety systems.
- Observe abnormal noise, vibration, or temperature changes.
Periodic Maintenance
- Inspect sealing components for wear.
- Check conveyor belts and protective coatings.
- Clean the shrink tunnel and airflow passages.
- Inspect electrical connections and control components.
- Verify temperature control accuracy.
- Lubricate mechanical components according to the manufacturer's recommendations.
Operators should also keep records of maintenance activities and recurring faults. A simple maintenance history can help identify developing problems before they cause major production interruptions.
Frequently Asked Questions
1. What film does the High Speed Side Sealing Shrink Wrapping Machine use?
The machine is designed for POF shrink film. Buyers should confirm the required film width, thickness, and shrink characteristics according to the product and packaging configuration.
2. How fast can the machine package products?
The HZ-RS450 model has a listed packaging speed of 10–100 packs per minute, while the HZ-RS800 model is listed at 10–80 packs per minute. Actual speed depends on product dimensions and operating conditions.
3. What is the advantage of side sealing?
Side sealing positions the sealing connection along the side of the package rather than prominently across the main product surface. This can provide a cleaner appearance while supporting continuous high-speed packaging.
4. Is the machine suitable for different product sizes?
Yes. The equipment supports specified packaging ranges, and product changeovers can be facilitated through recipe storage and mechanical adjustment. Buyers should provide product dimensions when requesting a configuration.
5. Can the machine be integrated into an automatic production line?
Yes. Its continuous conveying design makes it suitable for integration with upstream feeding systems and downstream packaging or handling equipment, subject to production-line requirements.
6. What should international buyers check before purchasing?
International buyers should confirm product dimensions, packaging speed, film specifications, electrical requirements, machine layout, installation conditions, spare-parts availability, training, commissioning, and after-sales technical support.
Conclusion
The High Speed Side Sealing Shrink Wrapping Machine represents a practical step toward faster, cleaner, and more automated secondary packaging. With side sealing, PLC control, adjustable conveying, insulated shrink tunnels, balanced airflow, and POF film compatibility, the system can address many of the efficiency and quality challenges faced by modern manufacturers.
For companies evaluating a China manufacturer, supplier, or factory for automated shrink packaging equipment, Huaze combines packaging machinery engineering experience with configurable equipment and production-line support. If you are planning to upgrade your packaging process, improve throughput, or develop a customized automated solution, contact us with your product dimensions, target speed, film specifications, and production requirements to receive professional engineering recommendations and a suitable packaging solution.
