China Carton Handling Machines Manufacturer

Modern carton handling equipment must deliver speed without compromising box integrity. Huaze machines achieve this through servo-driven motions, gentle gripping mechanisms and adaptive size changeover. Whether you need a standalone case erector, a partition inserter, a random case sealer or a fully automated line that forms, loads and seals up to 30 cartons per minute, Huaze configures each system around your specific packaging specifications.

Product Models and Applications

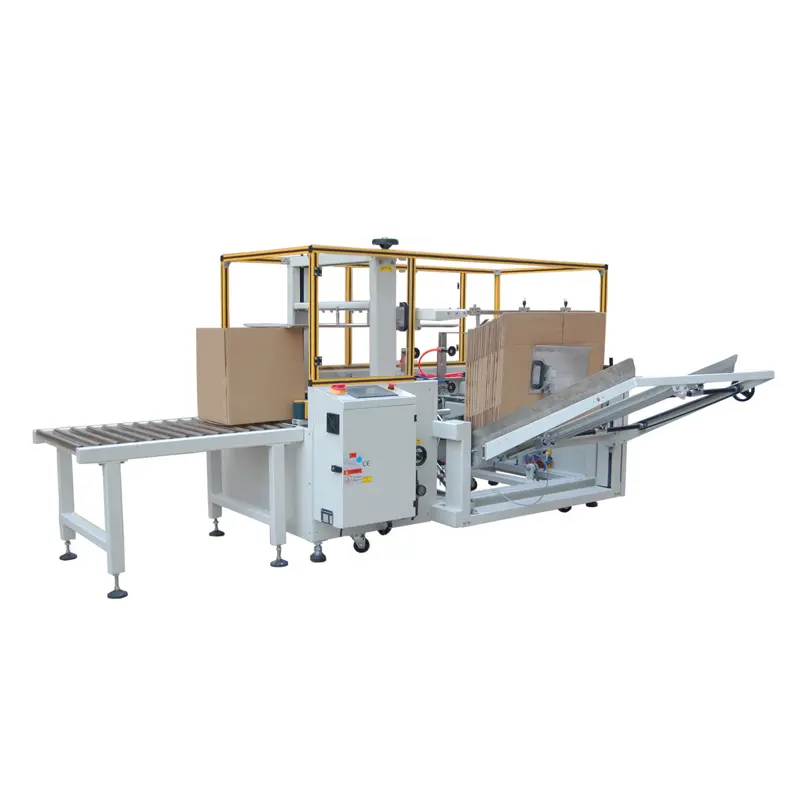

Case Erectors and Bottom Sealers

Huaze case erectors pick a flat blank from the magazine, fold the bottom flaps and apply adhesive or tape before discharging an erected case. They handle a broad spectrum of fluting grades, including B-flute, C-flute and triple-wall. Integrated squaring devices ensure precise right-angle geometry before sealing, which is vital for downstream robotic packing.

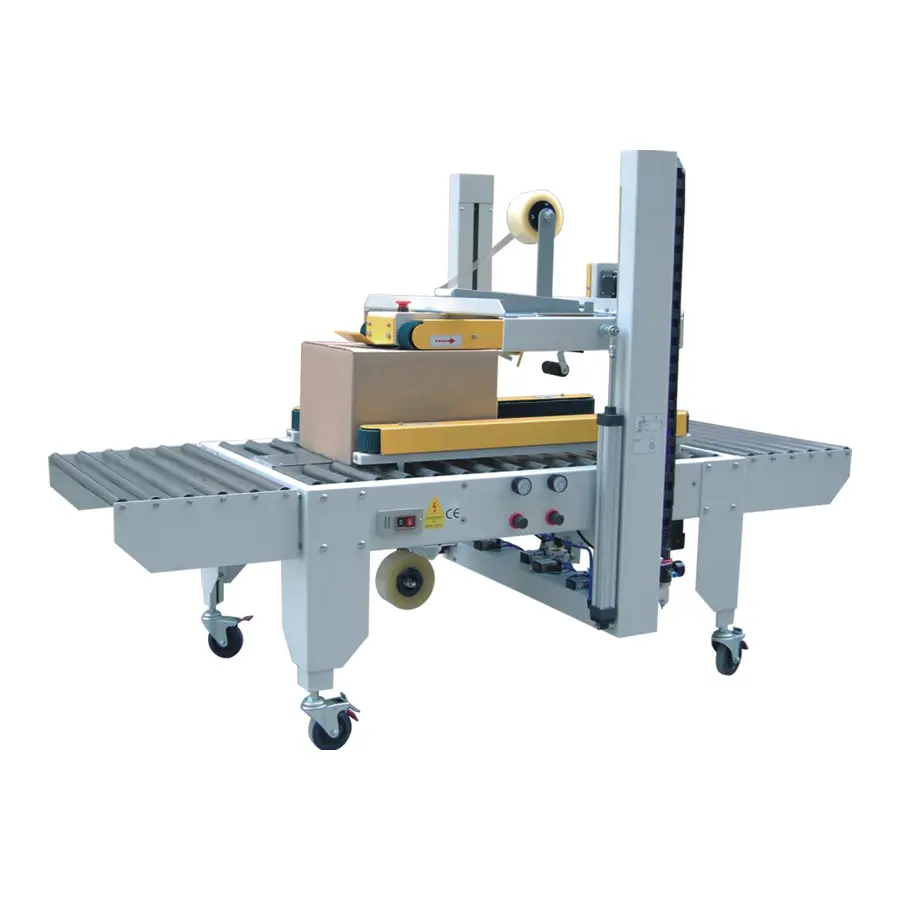

Random Case Sealers

When fulfillment centers process multiple carton sizes on a single line, Huaze random sealers automatically detect incoming case dimensions via sensor arrays and adjust the sealing head height and side belt width in real time. The transition between sizes takes less than two seconds, so mixed-size product streams don’t create bottlenecks.

Partition Inserters

For glass bottles, small vials or jars, Huaze partition inserters place dividers into erected cases at speeds up to 20 cycles per minute. The system uses a rotary placer with vacuum pickup and synchronized conveyor, guaranteeing divider alignment within 2 mm.

Case Closing and Palletizing Integration

Top case closers from Huaze can be installed standalone or integrated with inline checkweighers, label applicators and palletizers. Their compact footprint of under 2 meters length makes them suitable for lines where floor space is constrained. The closing force is adjustable via HMI, preventing damage to lightly filled boxes.

Safety and Compliance

European Machinery Directive 2006/42/EC and UL 508A compliance are standard. Light curtains cover the case blank magazine and sealing zone; e-stop buttons are positioned at loading and discharge ends. The guarding design follows ISO 14120, permitting quick access for cleaning while preventing operator injury. For washdown applications in dairy or meat processing, stainless steel models meet IP65 ingress protection.

Frequently Asked Questions

Q: Can Huaze carton handling machines process recycled or high-moisture content corrugated board?

A: Yes. The vacuum cup material is specified based on board surface. For high recycled content or damp conditions, silicone cups with enhanced grip are used. The blank magazine incorporates a separation air knife that gently fans the blanks, eliminating double picks. Additionally, the folding arms apply progressively rising force to avoid crushing softened flutes.

Q: How long does a size changeover take between different carton formats?

A: For standard manual changeover, a trained operator can complete all mechanical adjustments in 5 to 8 minutes. The optional servo-driven auto-changeover system reduces this to under 90 seconds. The HMI guides the operator through each step with visual prompts and hardware interlocks that prevent misalignment.

Q: What maintenance tasks and intervals are required?

A: Daily inspections: clean vacuum cups, verify adhesive nozzle flow, check safety light curtain function. Weekly: inspect belt tension and condition, lubricate linear guide rails with approved grease. Monthly: replace vacuum filters, test emergency stop response, calibrate sensors. Huaze provides a comprehensive maintenance contract that includes bimonthly visits, spare parts management and 24/7 hotline support.

Q: Are these machines capable of handling glue-flap cartons as well as tape-sealed ones?

A: Absolutely. Huaze offers a combi-head configuration where the same machine can switch between hot melt glue and pressure-sensitive tape in about 15 minutes. This is useful for co-packers who run different customer requirements within the same week. The adhesive application pattern is programmable via the HMI; for instance, a dot pattern for easy retail shelf opening or full-length bead for heavy shipping cases.

Q: What is the maximum case weight the machines can convey after sealing?

A: Standard side-belt conveyors are rated for up to 30 kg per case. For heavier loads, heavy-duty roller conveyors with motorized drive rollers are specified. The machine frame and sealing station can handle up to 40 kg without structural modification.
