In the modern packaging industry, automation is no longer a luxury—it is a necessity. The heart of many packaging lines is the cartoning machine, a versatile workhorse that erects, fills, and closes cartons at remarkable speeds. From pharmaceutical blisters and food sachets to cosmetic tubes and hardware components, cartoning machines handle an incredible variety of products with precision and consistency. Understanding the different types, technical specifications, and selection criteria of cartoning machines is critical for manufacturers aiming to boost productivity, reduce labor costs, and maintain high packaging quality.

Cartoning machines typically fall into two main categories based on carton style and product loading orientation: horizontal cartoning machines and vertical cartoning machines. Horizontal machines load products sideways into the carton, making them ideal for free-flowing items like pouches, bars, bottles, and blister packs. Vertical machines drop products from above into cartons, which is perfect for granular products, powders, or stacked items that benefit from gravity-assisted filling. Beyond these basic types, there are also end-load and top-load configurations, as well as wraparound cartoners that form the carton around the product, minimizing material usage.

Types of Machines and Their Applications

Understanding which type of cartoning machine fits your production line is the first step toward a successful automation project. Each type offers distinct advantages.

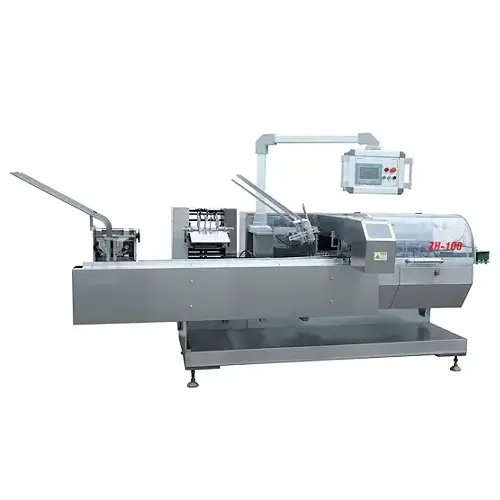

Horizontal Cartoning Machines

• Products are inserted horizontally, often using a pusher mechanism.
• Ideal for flow-wrapped items, blister packs, sachets, bottles, and tubes.
• Speeds range from 60 to 300 cartons per minute for continuous motion models.
• Commonly used in pharmaceutical, food, and personal care industries.
• Available in intermittent motion for lower speeds and continuous motion for high-speed lines.
• Can be integrated with leaflet inserters, coders, and checkweighers.

Vertical Cartoning Machines

• Products are dropped vertically into cartons, often from a multi-head weigher or volumetric filler.
• Suitable for loose products: tea bags, coffee pods, frozen vegetables, powders, confectionery.
• Carton is usually formed, filled while open at the top, and then closed with tuck or glue.
• Speeds up to 200 cartons per minute, depending on product drop height and settling time.
• Footprint is typically smaller than equivalent horizontal machines.
• Excellent for free-flowing products that do not require orientation.

End-Load Cartoners

• Products are pushed from the end of a pre-erected carton.
• Common for multiple product stacks, such as cookies, frozen pizzas, or grouped items.
• Often paired with product collating systems.
• Can handle large carton sizes and heavy payloads.

Wraparound Cartoners

• The carton blank is wrapped around the product and sealed, often with hot melt glue.
• Reduces carton board inventory because blanks are flat.
• Tight product fit eliminates the need for additional internal fitments.
• Excellent for large volume production of uniform items like beverage multipacks or cereal boxes.

FAQ

What is the difference between intermittent and continuous motion cartoning machines?

Intermittent motion cartoning machines move the carton from one station to the next in a stop-and-go manner. The carton transport indexes while operations like erecting, filling, and closing happen when the carton is stationary. This design is mechanically simpler and typically lower cost, suited for speeds up to about 80 cartons per minute. Continuous motion machines, on the other hand, keep cartons moving at a constant speed. Filling and closing actions occur on the fly, synchronized via servo-driven mechanisms. This enables much higher throughput—often 150 to 300 cartons per minute—and gentler product handling, as there is no sudden acceleration or deceleration of the carton. The trade-off is higher capital cost and complexity, but for high-volume lines, continuous motion offers superior performance and lower lifetime cost per carton.

How does a cartoning machine handle different carton sizes?

Cartoning machines are designed with adjustability in mind. Most machines use hand wheels, quick-release pins, and digital position indicators to change the width, height, and length settings of the carton magazine, erecting station, transport carriers, and closing mechanisms. In higher-end Huaze models, size changeover can be driven by servo motors with recipe recall, completing a full format change in under 10 minutes without tools. Change parts such as carton guides, tucking fingers, and product buckets may need to be swapped if the size variation exceeds the built-in adjustment range. A well-engineered machine will have these parts color-coded and stored in a dedicated cart. Proper training and documented SOPs ensure that operators can perform repeatable changeovers, minimizing downtime and maintaining seal integrity.

What after-sales support does Huaze provide for cartoning machines?

Huaze offers a global support network that includes installation and commissioning by factory-trained engineers, on-site operator and maintenance training, a comprehensive spare parts catalog with recommended critical spares kits, and remote diagnostic capabilities. Technical support is available via phone, email, and video call with real-time machine connectivity. Service contracts can be tailored for preventive maintenance visits, performance audits, and software upgrades. The company also provides a warranty period of 12 months from commissioning or 18 months from shipment, covering material and workmanship defects. With strategically located spare parts hubs in key regions, Huaze ensures fast delivery of components to minimize downtime. Customers consistently highlight the responsiveness of the Huaze service team as a key reason for their long-term partnerships.
