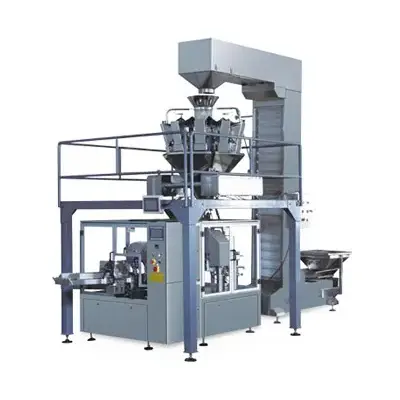

Automatic Granule Bag Packing Machine

This Automatic Granule Bag Packing machine follows a complete and standardized one-stop packaging workflow to ensure neat packaging and stable finished product quality. The full working sequence is as follows: 1. Bag feeding;

2. Date coding;

3. Zipper opening (optional function);

4. Upper and lower bag opening;

5. Material filling and vibrating feeding;

6. Air exhausting and compacting;

7. Heat sealing;

8. Shaping, online inspection and finished product output.

The whole process runs automatically with smooth procedures, realizing integrated and streamlined packaging production.

Main technical parameters of the product

Product Core Features

1. Full Automatic Integrated Production Process

The machine can automatically complete the entire production process including automatic feeding, automatic bag picking, coding, bag opening, quantitative filling, heat sealing and finished product output, realizing unmanned continuous packaging operation and greatly improving production efficiency.

2. Intelligent Combination Weigher with High Stability & Precision

Equipped with PLC + POD touch screen operation interface, the intelligent combination weigher features simple operation, high metering accuracy, fast operating speed and stable overall equipment performance, supporting long-term high-precision batch packaging production.

3. Intelligent Anti-waste Detection Function

With automatic detection function, the machine will not feed materials or perform heat sealing if the bag is not opened or incompletely opened. The unopened bags can be reused effectively, avoiding packaging material and raw material waste and reducing enterprise production costs.

4. Electric Bag Width Adjustment, Time-saving & Efficient

The bag width is adjusted by electric control. Operators only need to press the control button to adjust the clamping width of each machine group. The adjustment operation is convenient and fast, greatly saving equipment debugging and product switching time.

5. Professional Safety Alarm Protection Device

The machine is equipped with a complete safety protection system. It will trigger an alarm prompt in case of abnormal working air pressure or heating tube failure, timely reminding operators of equipment faults, ensuring safe and stable machine operation and reducing failure loss.

6. Food-grade Hygienic & Anti-corrosion Design

Complying with food processing machinery hygiene standards, all parts of the machine that contact materials and packaging bags are made of stainless steel or other food-grade hygienic materials. It ensures food safety during packaging and meets the anti-corrosion packaging requirements of special chemical products.

7. Ultra-wide Packaging Compatibility

The equipment has strong versatility. By replacing different metering devices, it can adapt to automatic packaging of various materials including liquid, granule, paste, powder and irregular block materials, covering multiple packaging scenarios.

Product Application Scope

This Automatic Granule Bag Packing Machine is widely suitable for packaging various solid materials including granular, block, strip, spherical and irregular shaped products. The applicable materials cover multiple categories, detailed as follows:

1.Frozen Food: Frozen French fries, frozen glutinous rice balls

2.Snack & Nut Food: Melon seeds, pistachios, peanuts, nuts, preserved plums, almonds, raisins, chocolate, potato chips, rice crackers, puffed food

3.Crystal & Condiment Products: Granulated sugar, rock sugar, crystal monosodium glutamate, chicken essence

4.Seed Products: Various seeds

5.Hardware Accessories: Small hardware items and other irregular solid materials.
