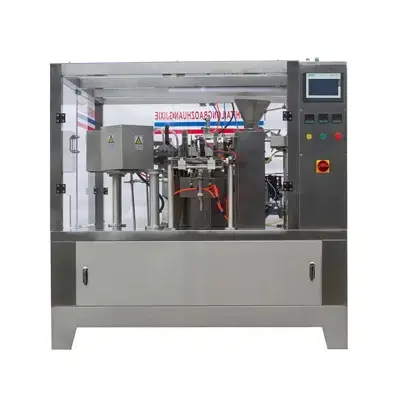

Automatic Bag Packaging Machine

This Automatic Bag Packaging Machine adopts advanced PLC + POD touch screen operation interface, realizing full-process automatic control with intuitive parameter setting and simple operation. It is equipped with a frequency conversion speed regulation device, supporting stepless adjustment of packaging weight and arbitrary switching of working states, which is flexible and convenient. The bag width can be quickly adjusted via a manual adjusting handle, realizing fast replacement of different packaging bag specifications and overcoming packaging weight deviation caused by material specific gravity changes. The optimized horizontal bag feeding structure allows large-capacity bag storage, lowers requirements for pouch quality, and ensures high bag separating and feeding efficiency with stable operation.

Complete Production Process:

The equipment follows standardized and streamlined automatic packaging steps, the complete workflow is as follows:

1. Bag picking;

2. Coding;

3. Reservation procedure;

4. Bag opening;

5. Material filling and vibrating feeding;

6. Dust removal or secondary material feeding;

7. Heat sealing;

8. Cold sealing, shaping and finished product output.

The whole process runs automatically with smooth procedures, realizing integrated and efficient packaging production.

Product Automatic Detection Function

This Automatic Bag Packaging Machine is equipped with dual sets of intelligent detection devices to realize full-process anti-waste intelligent protection. During operation, the system can automatically identify missing packaging bags and incompletely opened bags. Once abnormal conditions are detected, the machine will actively suspend filling and heat sealing actions. Unopened and unused pouches can be recycled and reused completely. This intelligent detection mechanism effectively avoids raw material loss and packaging material waste, solves the problem of defective empty-bag products, stabilizes packaging yield, and greatly saves enterprise production and operation costs.

Main technical parameters of the product

Product Pouch Adaptability & Application Scope

Wide Pouch Adaptability: The machine is compatible with various pre-made pouches made of composite bag films, including stand-up bags, flat bags, hand-held bags, zipper bags, four-side sealed bags, three-side sealed bags, paper bags and M-type bags, meeting diversified bag shape packaging requirements of different products.

1.Block Materials: Suitable for automatic packaging of candies, chocolate, biscuits, peanuts, green beans, pistachios, potato chips, rice crackers, rock sugar, cooked food, pickles, puffed food and other block-shaped products.

2.Granular Materials: Applicable for refined crystal monosodium glutamate, granular medicine, seeds, chemical raw materials, granulated sugar, chicken essence, melon seeds, nuts, fertilizer, feed and other granular materials.

3.Powder Materials: Adapt to powder packaging in pharmaceutical, food and chemical industries, including flour, rice flour, ingredient powder, milk powder, bean powder, condiments, monosodium glutamate, seasoning powder, granulated sugar, desiccant and other powdery materials.

4.Liquid & Paste Materials: Realizes automatic metering and packaging of liquid and paste materials such as fruit juice, tomato sauce, peanut butter, jam, seasoning sauce, chili sauce, hand sanitizer and detergent.

5.Other Packable Materials: Support packaging of all other customizable baggable materials, with strong overall versatility and wide industrial adaptability.
