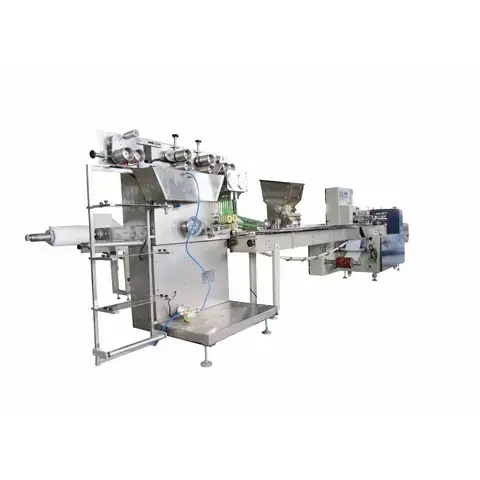

Single Piece Wet Wipe Packaging Machine

This Single Piece Wet Wipe Packaging Machine realizes a highly streamlined and fully automatic closed-loop production process for rectangular wet wipes without redundant manual intervention. It can adapt to different specifications of roll paper and non-woven fabric raw materials. The complete working procedure follows automatic mechanical logic in sequence:

raw material unwinding and feeding

→

precise longitudinal folding

→

fixed-length cutting

→

standard transverse folding

→

quantitative liquid spraying and wetting

→

mechanical compaction and shaping

→

automatic feeding and conveying

→

final finished packaging.

The whole production flow from raw material processing to finished product packaging is completed on one integrated equipment. Supported by built-in frequency speed regulation and photoelectric automatic tracking control system, each production link is precisely coordinated and synchronously operated to eliminate position deviation and unstable forming problems. It can be perfectly connected with supporting pillow-type packaging machines to form a fully automated assembly line, realizing continuous and uninterrupted batch production of standard rectangular single wet wipes.

Core Technical Parameters

Reliable Sealing Performance

Aiming at the wet and leak-prone characteristics of wet wipe products, this single piece wet wipe packaging machine is equipped with professional upgraded sealing and temperature control system to ensure long-term stable packaging tightness. The vertical sealing and horizontal sealing structures are independently equipped with high-precision PID constant temperature control systems, which can realize real-time accurate temperature adjustment and constant temperature output. The uniform and stable thermal pressure ensures flat, firm and integrated sealing edges without virtual sealing, missing sealing or gaps. The excellent integral sealing performance effectively prevents internal disinfectant or moisturizing liquid from leaking out, and isolates external dust, air and microorganisms from penetrating into the package. Different from traditional single temperature control equipment, dual independent PID control ensures consistent sealing quality at high-speed operation. All sealing processes are standardized and unified, effectively maintaining the internal wet environment and product hygiene of single wet wipes, meeting long-term storage and commercial circulation requirements.

Outstanding Production Benefits

This full-automatic Single Piece Wet Wipe Packaging Machine brings comprehensive efficiency improvement and cost reduction benefits for wet wipe processing enterprises. In terms of operational efficiency, the equipment supports a high production speed of 5-200 pieces/packages per minute, with compact structure, stable operation and low failure rate, realizing large-scale continuous batch production. Adopting instant setting and instant cutting technology, it requires no idle running adjustment during size switching, achieving one-step forming, which effectively saves packaging film consumption and shortens debugging time, greatly improving production utilization rate. In terms of operation cost, the Japan Panasonic PLC, frequency converter and touch screen integrated intelligent control simplifies operation steps, reducing reliance on skilled workers and lowering labor and training costs. In terms of product qualification rate, the photoelectric automatic tracking system ensures zero deviation packaging, effectively reducing defective products and rework loss. Meanwhile, the full stainless steel sanitary structure meets national health licensing standards, helping enterprises achieve standardized production, improve product market competitiveness and obtain stable long-term production benefits.

Achieve high-standard automatic production of single wet wipes with Huaze Single Piece Wet Wipe Packaging Machine. Full-process automatic operation, leak-proof PID sealing, Panasonic intelligent control and cost-saving performance optimize your wet wipe production line.
